TIM702- TIME ELECTRONICS 1070 CAPACITANCE DECADE BOX

Category: Resistance Decade Boxes (Rbox)

High accuracy and wide range makes the 1070 capacitance decade box suitable for applications in industry and education.

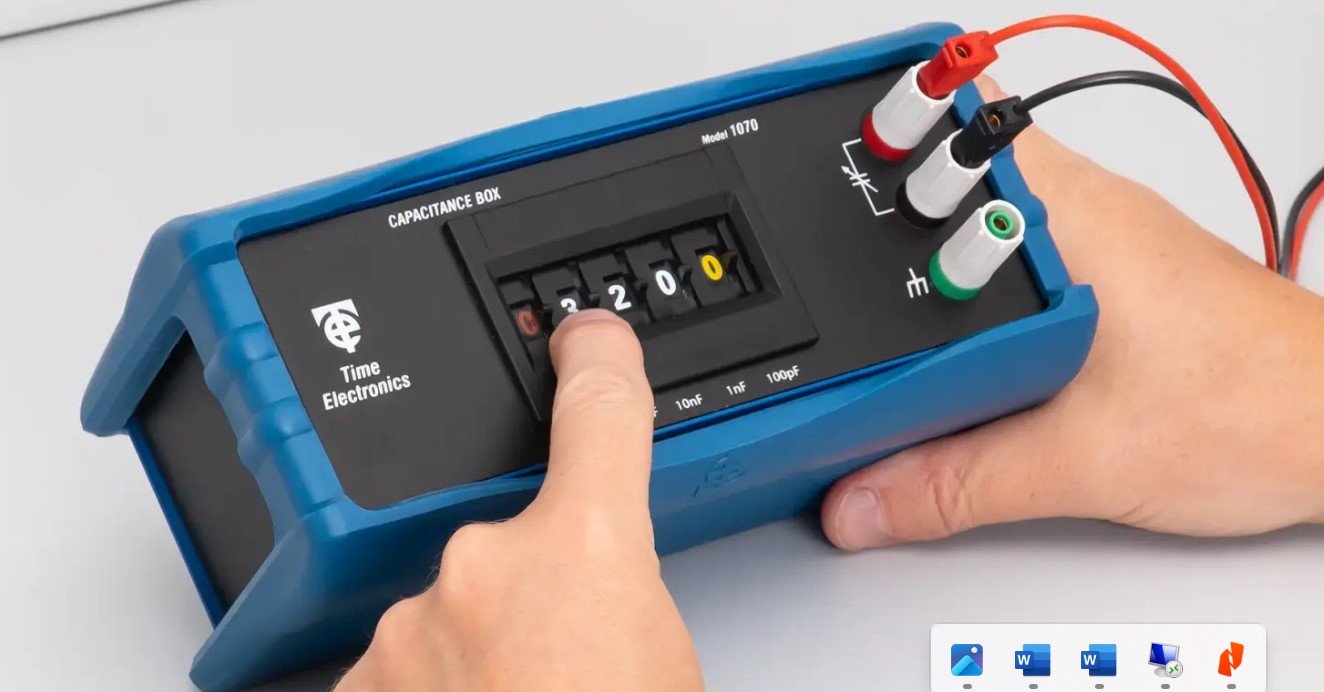

It is both compact and robust, housed in a metal case that provides complete screening, with a protective rubber cover to guard the 1070 against everyday wear and tear. The 5-digit thumbwheel switch enables simple and precise setting of the capacitance value.

Clear Visual Indication: To make selecting and reading the setting easy the 1070 incorporates colour coded digits: μF - red, nF - white, pF - yellow.



Features

  • 100 pF to 10 μF
  • 1 % Accuracy
  • In-line readout
  • Colour coded digits
  • Safety terminals
  • Bi-polar working
  • Supplied with protective cover
  • General purpose capacitance substitution
  • Calibration of capacitance in measuring devices
  • Finding optimal operating values in circuits
  • Service work, troubleshooting and maintenance
  • Educational use in electronics and physics

Specifications

Technical Specification
Range 0 to 10 μF
Resolution 100 pF steps (9 steps per decade)
Residual Capacitance Approximately 40 pF
Decade 100 pF 1 nF 10 nF 100 nF 1 μF
Accuracy @ 1 kHz 1 % ± 5 pF 1 % ± 5pF 1 % 1 % 1 %
Capacitor Type Silver mica Silver mica Silver mica Polycarbonate Polycarbonate
Max Voltage 300 V DC / 200 V AC 300V DC / 200 V AC 100 V DC / 72 V AC 100 V DC / 72 V AC 100 V DC / 115 V AC
Max Temp Coefficient 200 ppm/°C 50 ppm/°C 50 ppm/°C 75 ppm/°C 75 ppm/°C
Power Factor @ 1 kHz < 0.0015 < 0.002 < 0.01 < 0.01 < 0.01
Insulation Resistance > 50 GΩ > 50 GΩ > 30 GΩ > 30 GΩ > 30 GΩ
General Specification
Dimensions W 215 x H 100 x D 120 mm including protective cover (W 200 x H 75 x D 110 mm without)
Weight 0.84 kg including protective cover (0.64 kg without)
Supplied With Protective cover (fitted) and user manual
Optional Extras Carry case (protective cover is removed when used).
Calibration certificates: Traceable (factory) and accredited (ISO 17025).
Country of Origin UK
Shipping Details Packed Dimensions: L 31 x W 24 x H 25 cm / Packed Weight: 2 kg
HS Code 9030 3370
