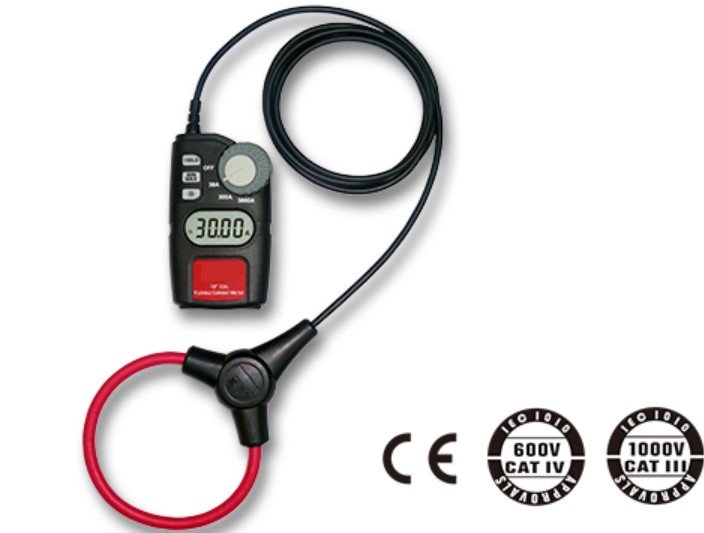

FEATURES
• Measurement Ranges: 30A/300A/3000A AC
• Output Resolution (LCD Display): 0.01A/0.1A/1A
• 8.5mm coil diameter allows measurement in tight spaces (Double insulated)
• 10” flexible sensor fit around conductors up to 3.2”in diameter
• 18” flexible sensor fit around conductors up to 5.8”in diameter
• TRMS Reading
SPECIFICATIONS
| Range | Resolution | Accuracy |
|---|---|---|
| 30A/300A/3000A | 0.01A/0.1A/1A | 3%rdg ± 5dgts |
| Frequency Range: 45~500Hz |
| Phase Error: < ±1° |
| Position Sensitivity: ± 3% |
| Display: 4 digital Liquid display, Maximum reading 3150 |
| Sampling Rate: 2 times/sec |
| Battery: 1.5V, size AAA battery x 2 |
| Probe Cable Length: 10"_254mm ; 18"_458mm |
| Dimensions(Meter): 120X70X26 mm |
| Weight: approx. 286g |
PS. The above specifications and other information are subject to change without notice.
Please contact sales person for the latest specifications update.
