Model \ Func.

INS0012
(9804)

INS0007
(9803)

INS0092
(9802)

INS0092B
(9801)

AC WITHSTANDING

v

v

v

v

DC WITHSTANDING

v

v

v

×

INSULATION RESISITANCE

v

v

×

×

GROUND BOND

v

×

×

×

 AC WITHSTANDING

 Output-Voltage Range

 0.050kV~ 5.000kV ac

 Output-Voltage Resolution

 2V/step

 Output-Voltage Accuracy

 ± (1% of setting +5V) [no load]

 Maximum Rated Load

 200 VA (5kV/40mA)

 Maximum Rated Current

 40mA (0.5kV < V ≦ 5kV)
 10mA (0.1kV ≦ V≦ 0.5kV)

 Output-Voltage Waveform

 Sine wave

 Output-Voltage Frequency

 50 Hz / 60 Hz selectable

 Voltage regulation

 ± (1% of reading +5V) [full load →no load]

 Voltmeter Accuracy

 ± (1% of reading+ 5V)

 Current Measurement Range

 0.001mA~040.0mA

 Current Best Resolution

 0.001mA / 0.01mA / 0.1mA

 AC Current Measurement Accuracy

 ±(1.5% of reading +30 counts) when HISET < 1.11mA
 ±(1.5% of reading +3 counts) when HISET ≧ 1.11mA

 Window Comparator Method

 Yes

 ARC Detect

 Yes

 RAMP (Ramp-Up Time)

 0.1~999.9s

 TIMER (Test Time)*

 OFF**, 0.5s~999.9s

 GND

 ON/OFF

 DC WITHSTANDING

 Output-Voltage Range

 0.050kV~ 6.000kV dc

 Output-Voltage Resolution

 2V/step

 Output-Voltage Accuracy

 ± (1% of setting +5V) [no load]

 Maximum Rated Load

 50W (5kV/10mA)

 Maximum Rated Current

 10mA (0.5kV < V ≦ 6kV)
 2mA (0.05kV ≦ V≦ 0.5kV)

 Voltage regulation

 ± (1% of reading +5V) [[full load → no load]

 Voltmeter Accuracy

 ± (1% of reading+ 5V)

 Current Measurement Range

 0.001mA~010.0mA

 Current Best Resolution

 0.001mA / 0.01mA / 0.1mA

 DC Current Measurement Accuracy

 ±(1.5% of reading +30 counts) when HISET < 1.11mA
 ±(1.5% of reading +3 counts) when HISET ≧ 1.11mA

 Window Comparator Method

 Yes

 ARC Detect

 Yes

 RAMP (Ramp-Up Time)

 0.1~999.9s

 TIMER (Test Time)*

 OFF**, 0.5s~999.9s

 GND

 ON/OFF

 INSULATION RESISITANCE

 Output-Voltage

 50V~1000V dc

 Output-Voltage Resolution

 50V/step

 Output-Voltage Accuracy

 ± (1% of setting +5V) [no load]

 Resistance Measurement Range

 1 MΩ~ 9500 MΩ

 Test voltage

 Measurable Range

 Accuracy

 50V≦V≦450V

 1 MΩ~ 50 MΩ
 51 MΩ~ 2000 MΩ

 ±(5% of reading +1 count)
 ±(10% of reading +1 count)

 500V≦V≦1000V

 1 MΩ~ 500 MΩ
 501 MΩ~ 9500 MΩ

 ±(5% of reading +1 count)
 ±(10% of reading +1 count)

 Window Comparator Method

 Yes

 Output Impedance

 600 kΩ

 RAMP (Ramp-Up Time)

 0.1~999.9s

 TIMER (Test Time)*

 1s~999.9s

 GND

 OFF (fixed)

 GROUND BOND

 Output-Current Range

 03.00A~30.00A ac

 Output-Current Resolution

 0.01A

 Output-Current Accuracy

 3A≦I≦8A : ± (1% of setting +0.2A)
 8A<I≦30A : ± (1% of setting +0.05A)

 Test-Voltage

 6Vac max. (open circuit)

 Test-Voltage Frequency

 50 Hz / 60 Hz selectable

 Resistance Measurement Range

 10mΩ~650.0mΩ

 Resistance Measurement Resolution

 0.1mΩ

 Resistance Measurement Accuracy

 ± (1% of reading +2mΩ)

 Window Comparator Method

 Yes

 TIMER (Test Time)*

 0.5s~999.9s

 GND

 OFF (fixed)

 Test Method

 Four Terminal

 MEMORY

 Single Step Memory

 MANU : 100 blocks

 Automatic Testing Memory

 AUTO : 100 blocks, menu per auto : 16

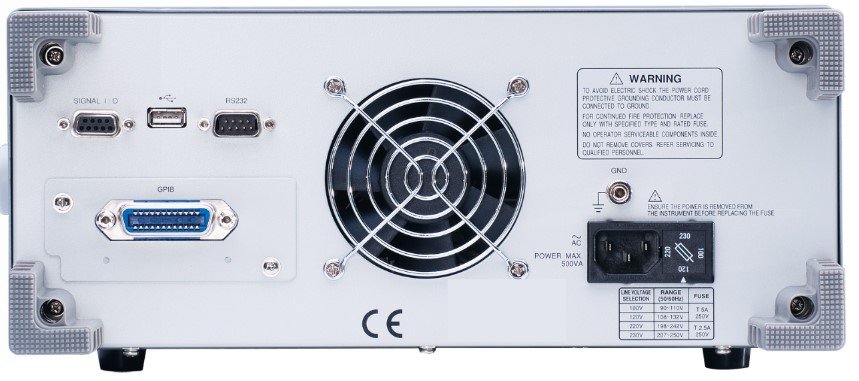

 INTERFACE

 RS232

 Standard

 USB (Device)

 Standard

 GPIB

 Option

 Remote Terminal (Front)

 Standard

 SIGNAL IO

 Standard

 GENERAL

 Display

 240 x 64 dot matrix LED back light LCD

 Power Source

 AC100V/120V/220V/230V ±10%, 50/60Hz

 Power Consumption

 500VA max.

 Dimensions & Weight

 330(W) x 148(H) x 452(D) mm (Max.),
 approx.19kg(Max)

  * TIMER Accuracy: ± (100ppm + 20ms)

  **The “TIMER OFF” can only be performed when the tester is in the special MANU mode
